| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DYTB0420_2E | -FG / RD | B | 12 | 7.0 to 15.0 | 0.12 | 1.44 | 9000 | 0.308 | 10.88 | 8.67 | 0.341 | 36.1 | 70000 |
| DYTB0420_2L | -FG / RD | B | 12 | 7.0 to 15.0 | 0.17 | 2.04 | 11000 | 0.369 | 13.03 | 14.83 | 0.583 | 41.8 | 70000 |
| DYTB0420_2M | -FG / RD | B | 12 | 7.0 to 15.0 | 0.21 | 2.52 | 13000 | 0.439 | 15.52 | 20.42 | 0.803 | 46.5 | 70000 |
| DYTB0420_2H | -FG / RD | B | 12 | 7.0 to 15.0 | 0.29 | 3.48 | 15000 | 0.518 | 18.32 | 27.04 | 1.064 | 49.6 | 70000 |
| DYTB0420_2U | -FG / RD | B | 12 | 7.0 to 15.0 | 0.40 | 4.80 | 17000 | 0.591 | 20.89 | 34.95 | 1.376 | 51.5 | 70000 |
| DYTB0420_2S | -FG / RD | B | 12 | 7.0 to 15.0 | 0.47 |
5.64 | 18000 | 0.632 | 22.33 | 36.67 | 1.443 | 52.9 | 70000 |
| DYTB0420_2F | -FG / RD | B | 12 | 7.0 to 15.0 | 0.50 | 6.60 | 19000 | 0.661 | 23.35 | 42.85 | 1.68 | 54.0 | 70000 |

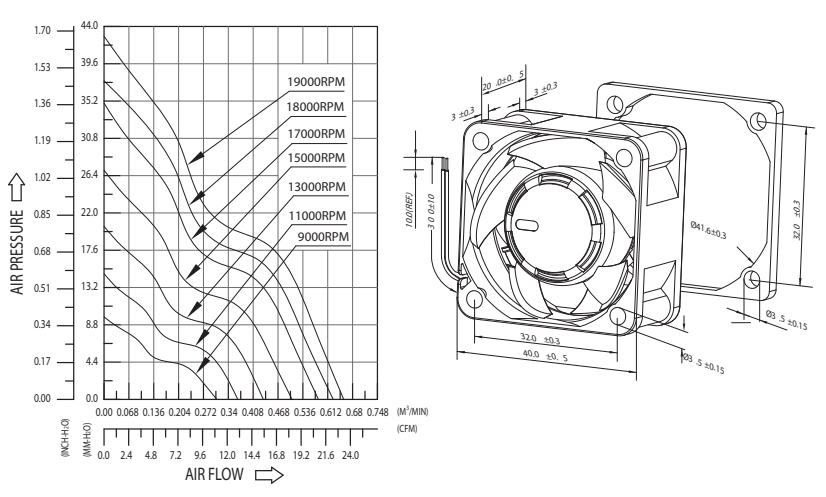

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
