| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
V PAR DC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DFPD0456_2U | -FG / RD | B | 12 | 10.8 to 13.2 | 2.30 | 27.6 | 22500/19500 | 1.02 | 36.02 | 100.48 | 3.956 | 69.8 | 70000 |

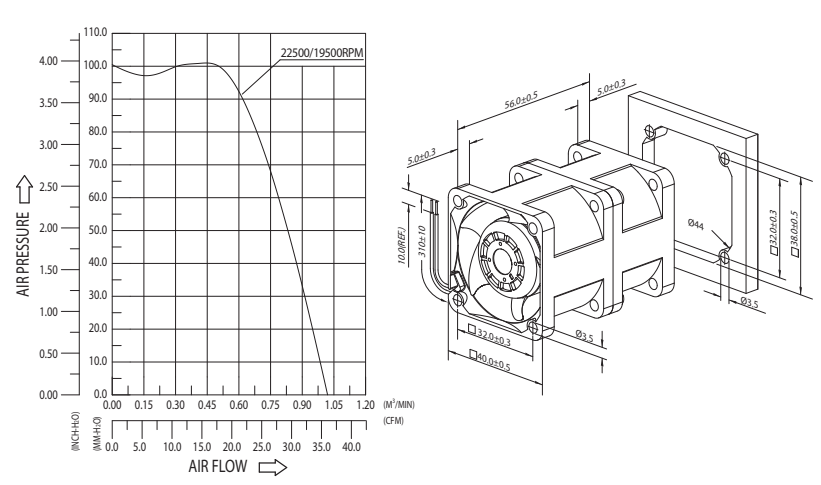

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
