* Size: 40x40x28mm
* Frame Material: die-cast allumium , Blade material: Thermoplastic(UL 94V-0)
* PE Lead Wires: UL 10368 AWG #26
* Cable Length: 400mm
* Impeller: 8 Blades
* Rotational direction CCW view from front face
* Weight: 56G

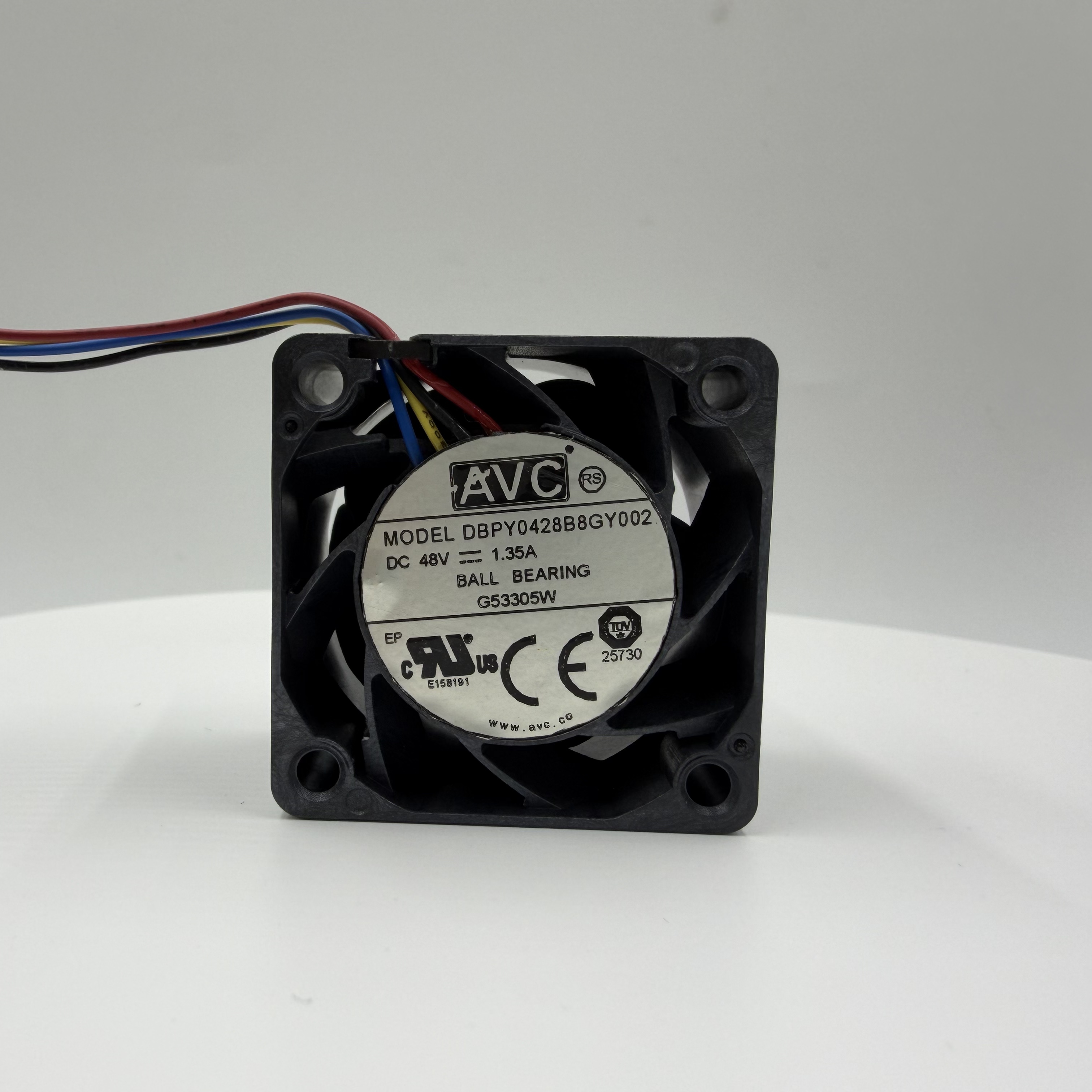

AVC 4028 48VDC 40x40x28 AVC axial fan cooler for High power inverters
Rated voltage: 48V (optional)
Operating voltage: 36.0 V~60 V
Rated current: 0.8A
Rated power: 38.4 W
Fan speed: 38000±10%R.P.M
Signal output: PWM controller
Maximum air volume:1.260m3/Min (44.49CFM)
Maximum wind pressure: 281.97 mmH2O (11.101inchH2O)
Acoustic noise level: 72 dB-A

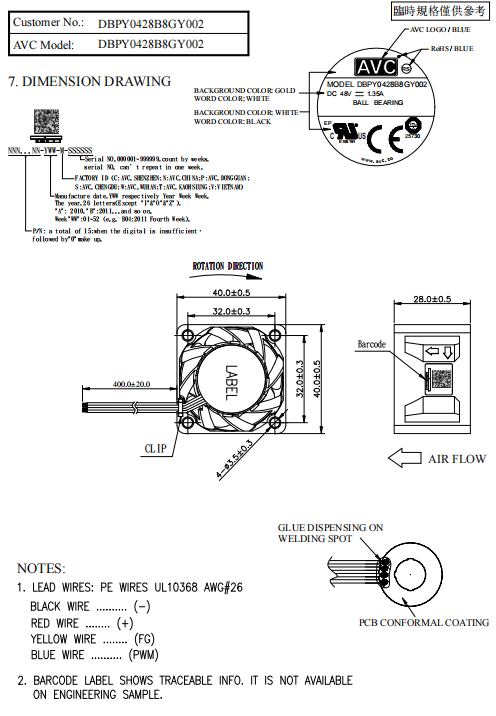

Frame Drawing
