| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DBPK0428_2E | -FG / RD | B | 12 | 7.0 to 13.2 | 0.50 | 6.00 | 16000 | 0.601 | 21.91 | 41.81 | 1.646 | 54.0 | 70000 |
| DBPK0428_2L |
-FG / RD | B | 12 | 7.0 to 13.2 | 0.60 |
7.20 |
18000 |
0.671 |
23.69 |
54.47 |
2.140 |
57.0 |
70000 |
| DBPK0428_2M |
-FG / RD | B | 12 | 7.0 to 13.2 | 1.00 |
12.00 |
21000 |
0.778 |
27.48 |
73.21 |
2.88 |
60.0 |
70000 |
| DBPK0428_2H |
-FG / RD | B | 12 | 7.0 to 13.2 | 1.20 |
14.40 |
23000 |
0.856 |
30.50 |
86.67 |
3.412 |
62.5 |
70000 |
| DBPK0428_2U |
-FG / RD | B | 12 | 7.0 to 13.2 | 1.40 |
16.80 |
25000 |
0.976 |
34.50 |
105.31 |
4.146 |
64.0 |
70000 |
| DBPK0428_2S |
-FG / RD | B | 12 | 7.0 to 13.2 | 2.30 |
27.60 |
30000 |
1.107 |
39.09 |
145.39 |
5.724 |
69.5 |
70000 |

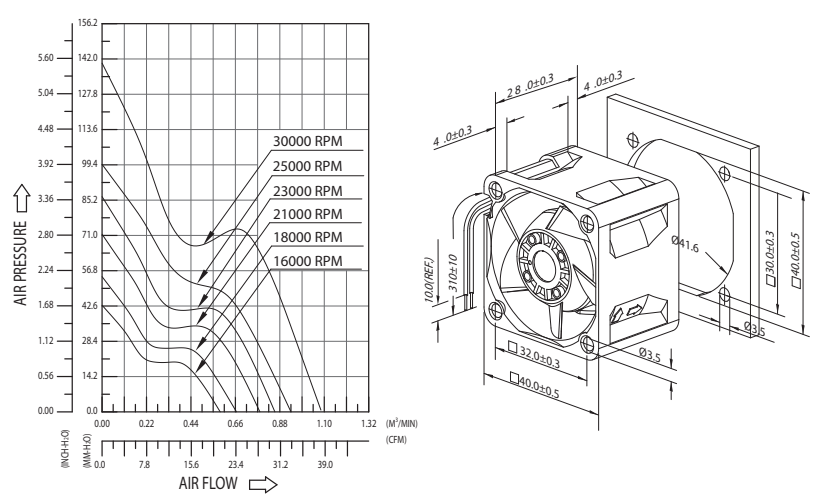

| Product P&Q Curve Dimension Drawing | |||||||||||||
|
|
|||||||||||||
