| MODEL | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Acoustic Noise | Life expectancy | |||
| PART NO. |
SIGNAL |
B.T.S.R |
VDC |
VDC |
Amp |
Watt |
R.P.M. |
m³/min |
CFM |
mmH₂O |
IN H₂O |
dB-A |
hours |
| DAZA0625_2U | -FG/RD | B | 12 | 7.0 to 13.2 | 0.70 | 8.40 | 6800 | 1.039 | 36.71 | 11.52 | 0.453 | 45.0 | 70000 |
| DAZA0625_2H |
-FG/RD |
B |
12 |
7.0 to 13.2 |
0.60 |
7.20 |
5000 |
0.768 |
27.12 |
6.38 |
0.251 |
37.6 |
70000 |
| DAZA0625_2M |
-FG/RD |
B |
12 |
7.0 to 13.2 |
0.40 |
4.80 |
4000 |
0.616 |
21.77 |
4.08 |
0.161 |
32.0 |
70000 |
| DAZA0625_2L |
-FG/RD |
B |
12 |
7.0 to 13.2 |
0.30 |
3.60 |
3300 |
0.508 |
17.96 |
2.78 |
0.109 |
22.2 |
70000 |

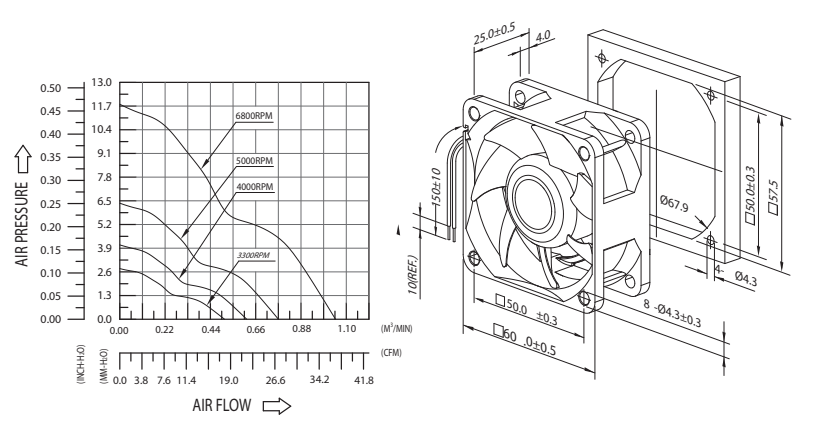

Product P&Q Curve Dimension Drawing |
|||||||||||||
|
|
|||||||||||||
